EdgePro FixEdge Z-Bar Concrete Bolt M12 (S)
EdgePro FixEdge Z-Bar Concrete Bolt M12 (S)
Dual-function concrete screw with integrated Z-Bar coupler
Regular price
$18.00
Regular price
Sale price
$18.00
ex GSTShipping calculated at checkout.
Quantity
Minimum order 20
Couldn't load pickup availability
Get project pricing
Ordering for a project? Call 1300 085 365
- 12-month warranty
- Ships from SEQ
- 500+ reuses per bracket
Combines a high-strength M12 concrete screw with an integrated Z-Bar coupler in one engineered unit, the preferred fixing for suspended rebate and nib wall applications. Fewer loose components, faster install.
Product details
Specifications
- Series
- FixEdge
- Material
- High-Tensile Steel
- Dimensions

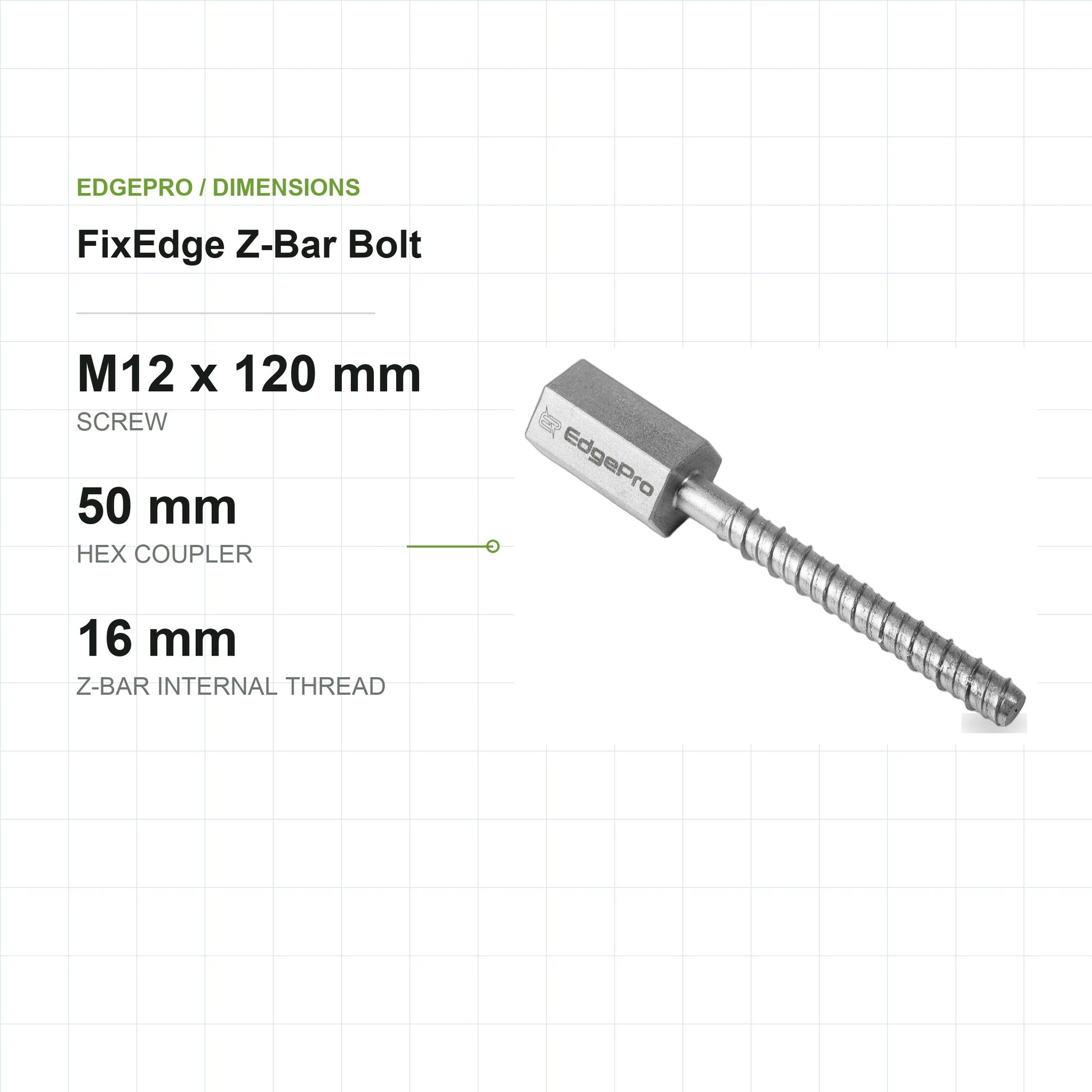

- Screw M12 x 120mm, 50mm hex coupler, 16mm Z-Bar internal thread
- Finish
- Galvanised
Works with
-
EdgePro FixEdge Z-Bar Locknut (S)
$12.00 ex GST
-
EdgePro RebateEdge Slab 450 (S)
$60.00 ex GST
Choose your anchor
Match the FixEdge anchor to the ground you are fixing into.
| Product | Best application | Ground / material type | Install method | Reusable & easy clean |
|---|---|---|---|---|
| FixEdge StarPeg Anchor (S) | Manual anchor | Soft to medium sand, dirt, crusher dust | Lump, sledge or hammer | ✓ |
| FixEdge Ground Screw Anchor (S) | Fast, high-strength hold | Medium to dense compact soil | Drill or rattle gun, 19mm socket | ✓ |
| FixEdge Concrete Bolt M12 (S) | Concrete fixing | Concrete | Drill + rattle gun, 19mm socket | ✓ |
| FixEdge Z-Bar Concrete Bolt M12 (S) | Z-bar systems | Concrete | Drill + rattle gun, 30mm socket | ✓ |
| FixEdge Z-Bar Locknut (S) | Z-bar locking | FRP edgeboard / Z-bar | Hand tighten, light hammer | ✓ |
