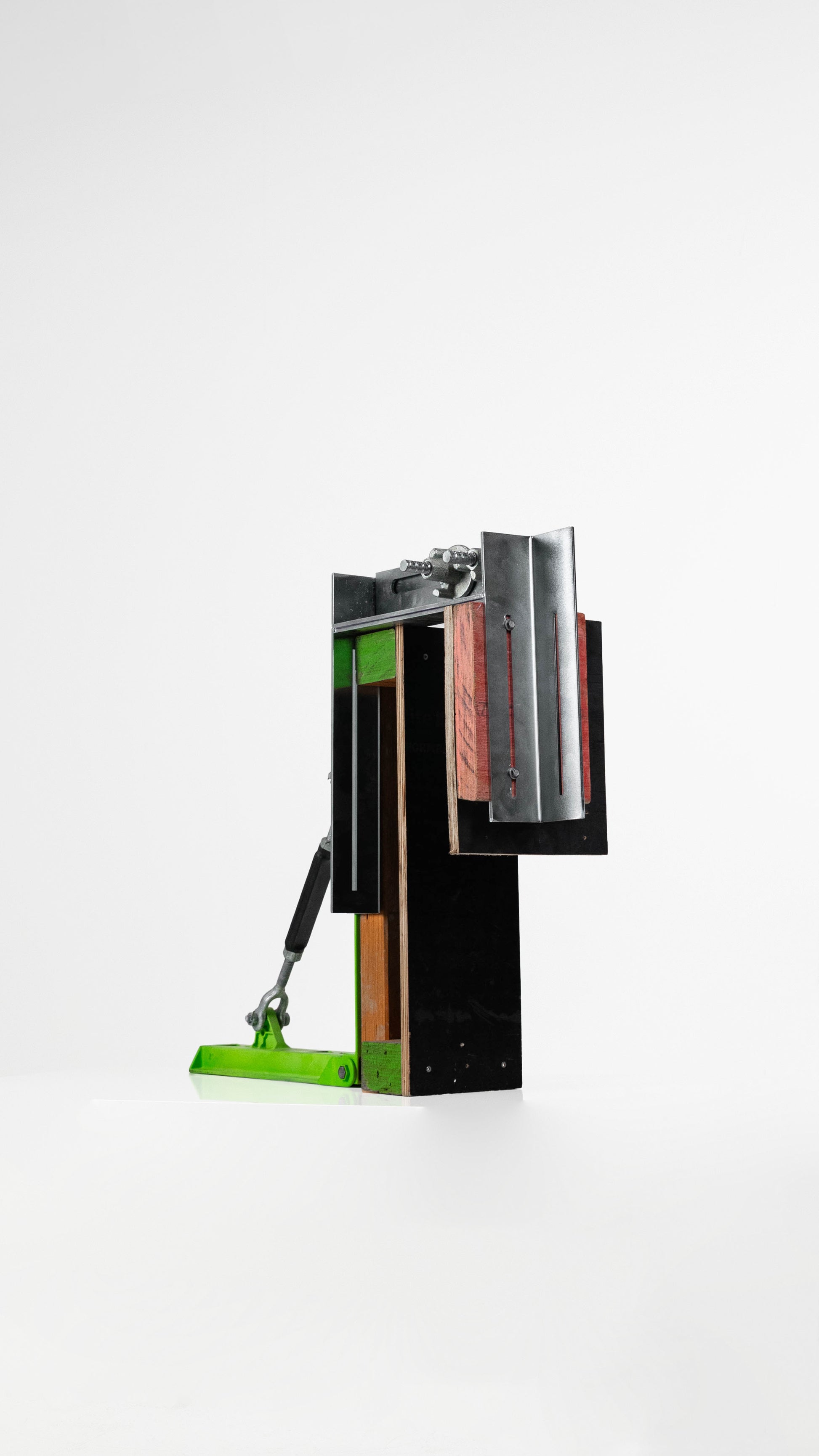

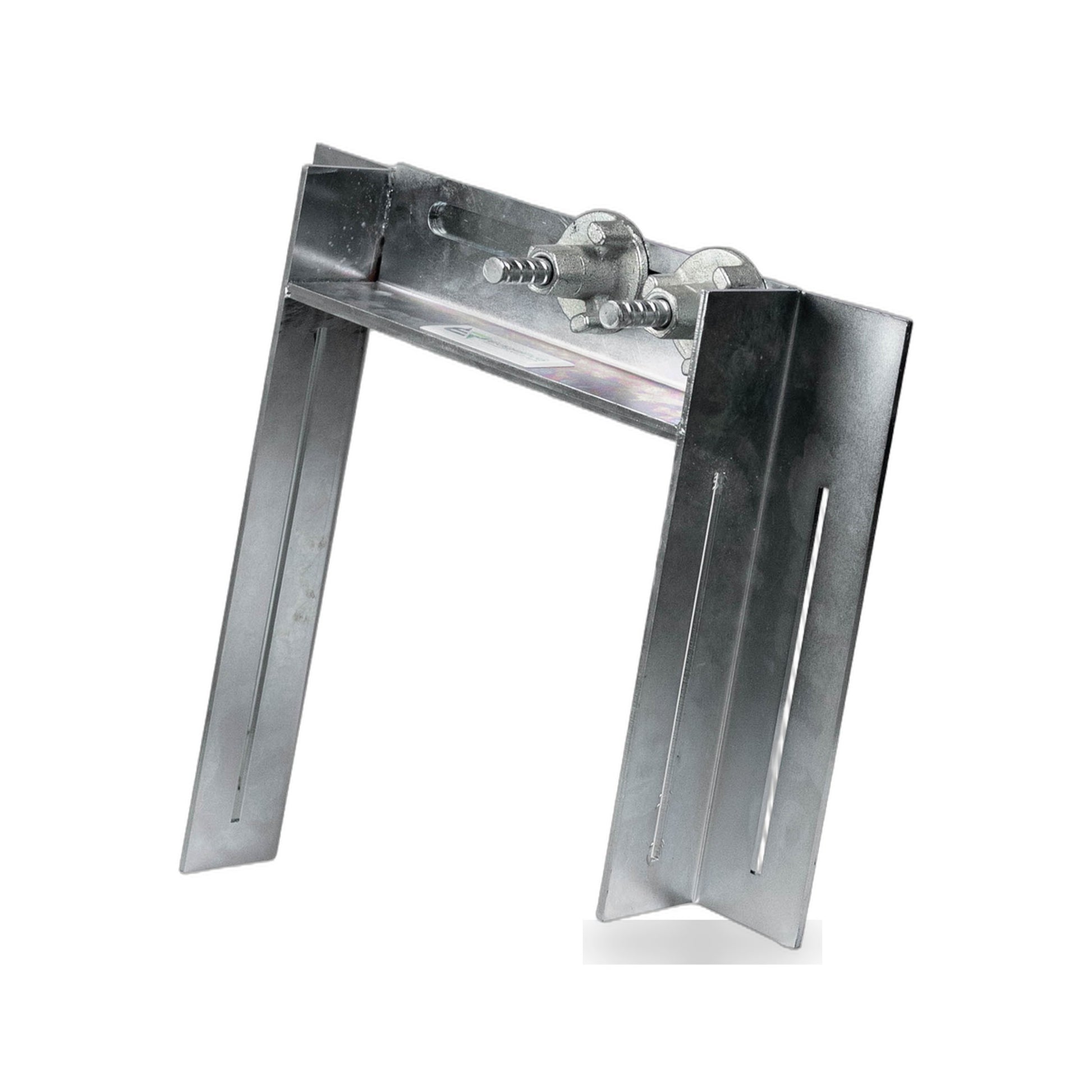

EdgePro RebateEdge Slab 450 (S)
EdgePro RebateEdge Slab 450 (S)
Adjustable steel rebate bracket for slab rebates and nib walls
Coming soonThis product is in final production.
Register your interest and we will let you know the moment it lands, with launch pricing held for you.
Register interestOrdering for a project? Call 1300 085 365
- 12-month warranty
- Ships from SEQ
- 500+ reuses per bracket

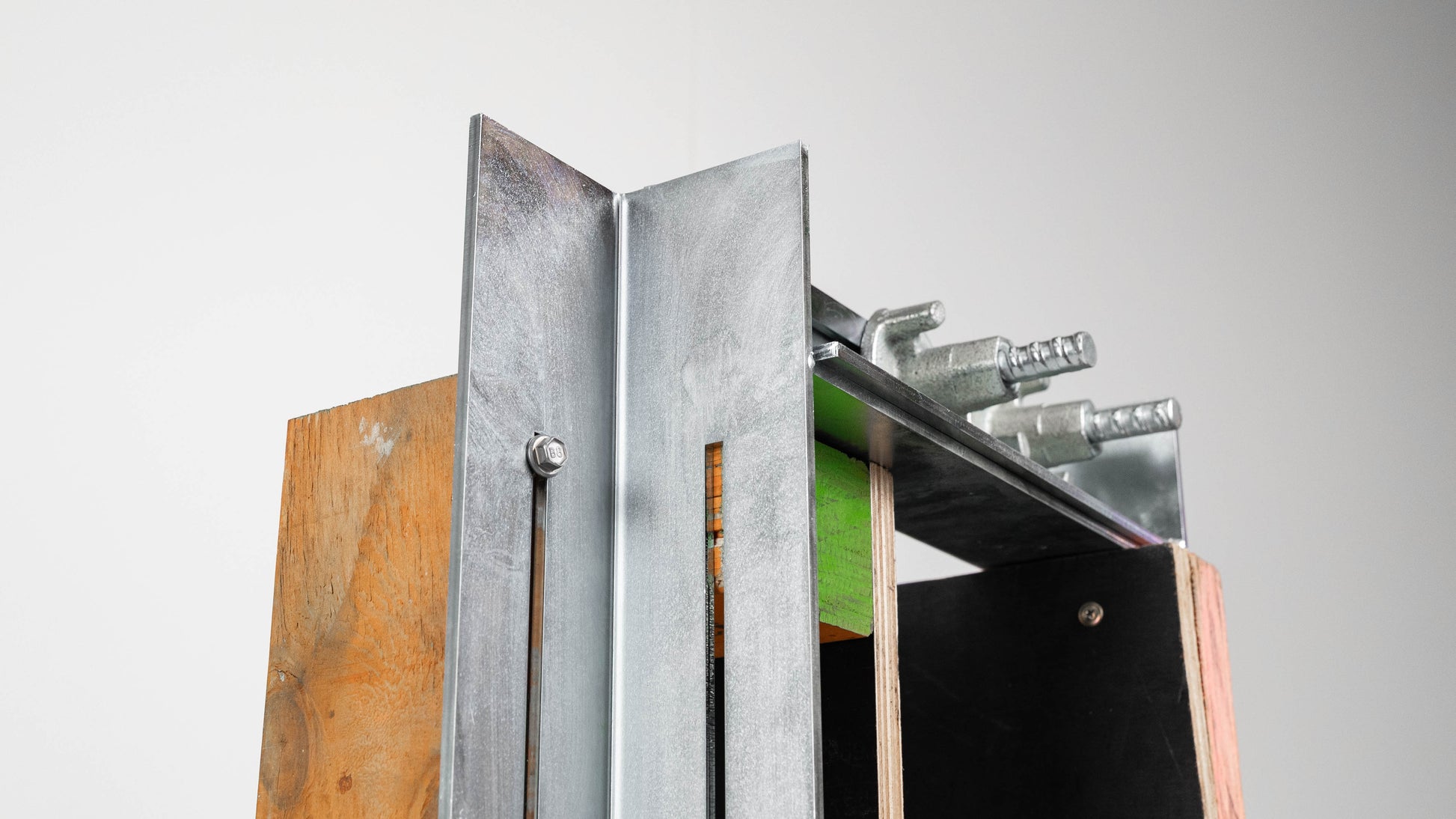

Creates slab rebates, nib walls, upstands and recessed details directly from the slab edge, formed as part of the primary pour, eliminating secondary pours and timber boxing. Suspended hanging design, no ground support required.
Product details
Specifications
- Series
- RebateEdge
- Material
- Structural Steel
- Dimensions

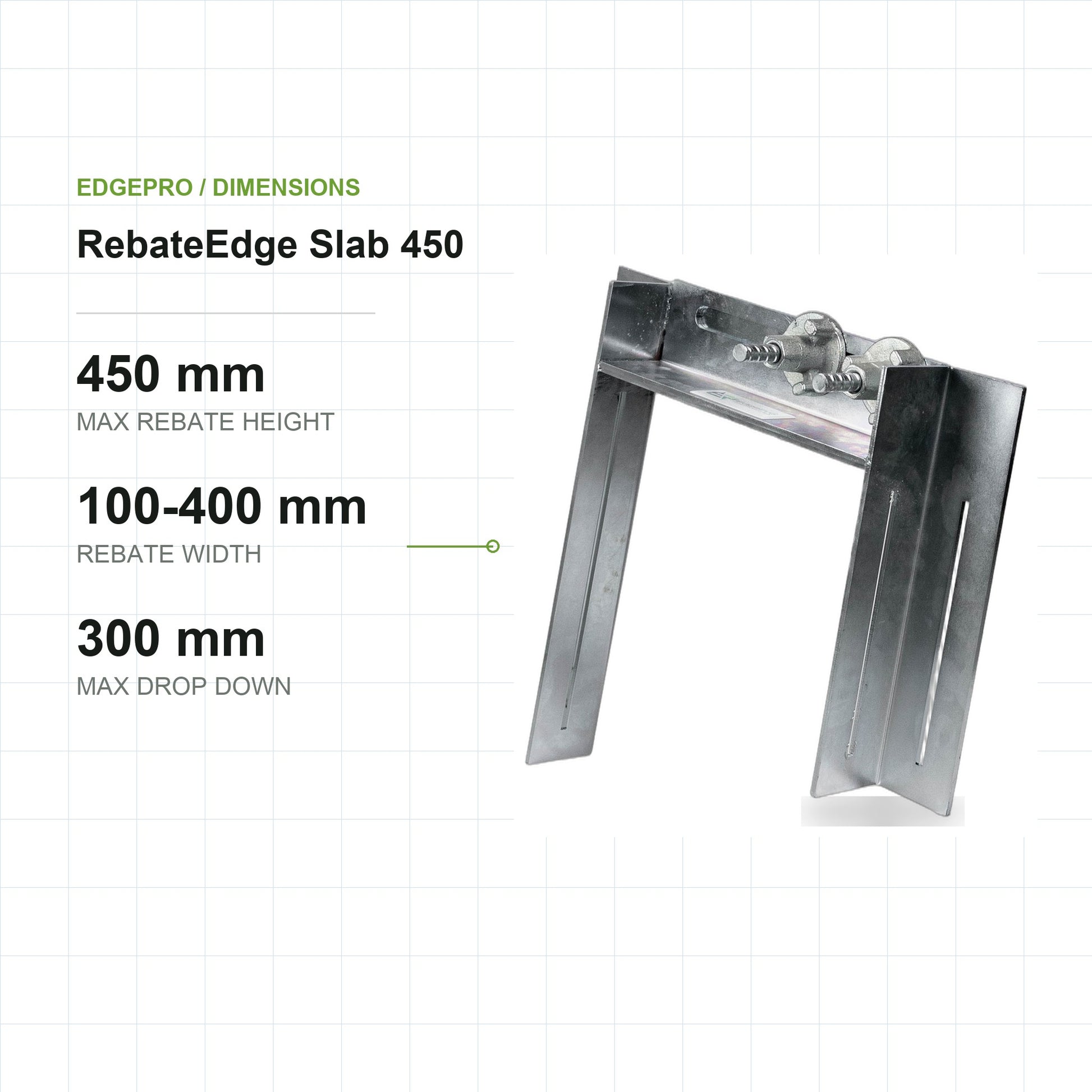

- Max rebate height 450mm, rebate width 100-400mm, max drop down 300mm
- Max slab edge
- 450 mm
- Finish
- Galvanised
Anchoring to different surfaces
EdgePro brackets anchor to whatever the pour sits on. Match the fastener to the surface:
| Surface | Fastener |
|---|---|
| Concrete | FixEdge Concrete Bolt M12 or FixEdge Z-Bar Concrete Bolt M12 |
| Plywood or timber | Hexhead screws (30mm to 100mm) or coach screws |
| Dirt, granular bedding or sand | FixEdge Ground Screw Anchor or FixEdge StarPeg Anchor |
| Metal | Weld lugs or threaded bar, locked with the FixEdge Z-Bar Locknut |
Full setup steps in Instructions For Use.
Works with
-
EdgePro FixEdge Z-Bar Concrete Bolt M12 (S)
$18.00 ex GST
-
EdgePro FixEdge Z-Bar Locknut (S)
$12.00 ex GST
Compare the bracket range
Every EdgePro bracket, side by side. Pick the height and duty rating your pour needs.
| Feature | BaseEdge 300 (P) | FlexEdge 600 (P) | MaxEdge 1200 (S) | RebateEdge Wall 450 (S) | RebateEdge Slab 450 (S) |
|---|---|---|---|---|---|
| Type | Fixed 90° | Adjustable | Adjustable | Rebate / Wall | Rebate / Slab |
| Max concrete height | 300mm | 600mm | 1200mm | 450mm | 450mm |
| Material | Polymer | Polymer & Steel (Gal) | Steel (Gal & Powdercoat) | Steel (Gal) | Steel (Gal) |
| Adjustability | ✕ | ✓ ±15° | ✓ | ✓ | ✓ |
| Weight | ~1.1kg | ~3.0kg | ~22kg | ~11kg | 7kg |
| Best use | Hi-rise / Precast | Civil / Commercial / Residential / Hi-rise | Heavy duty | Wall rebates / Overhangs | Step-downs / Block rebates |
| Reusable & easy cleaned | ✓ | ✓ | ✓ | ✓ | ✓ |
| Status | Available | Available | Available | Available | Coming soon |
On site
EdgePro bracing on real pours across Australia.
FlexEdge on a steel edge form
Set out for a warehouse pour
Pour day
Edge forms on compacted base
Bracing a suspended slab edge
Pathway forms, regional QLD
