EdgePro RebateEdge Wall 450 (S)
EdgePro RebateEdge Wall 450 (S)

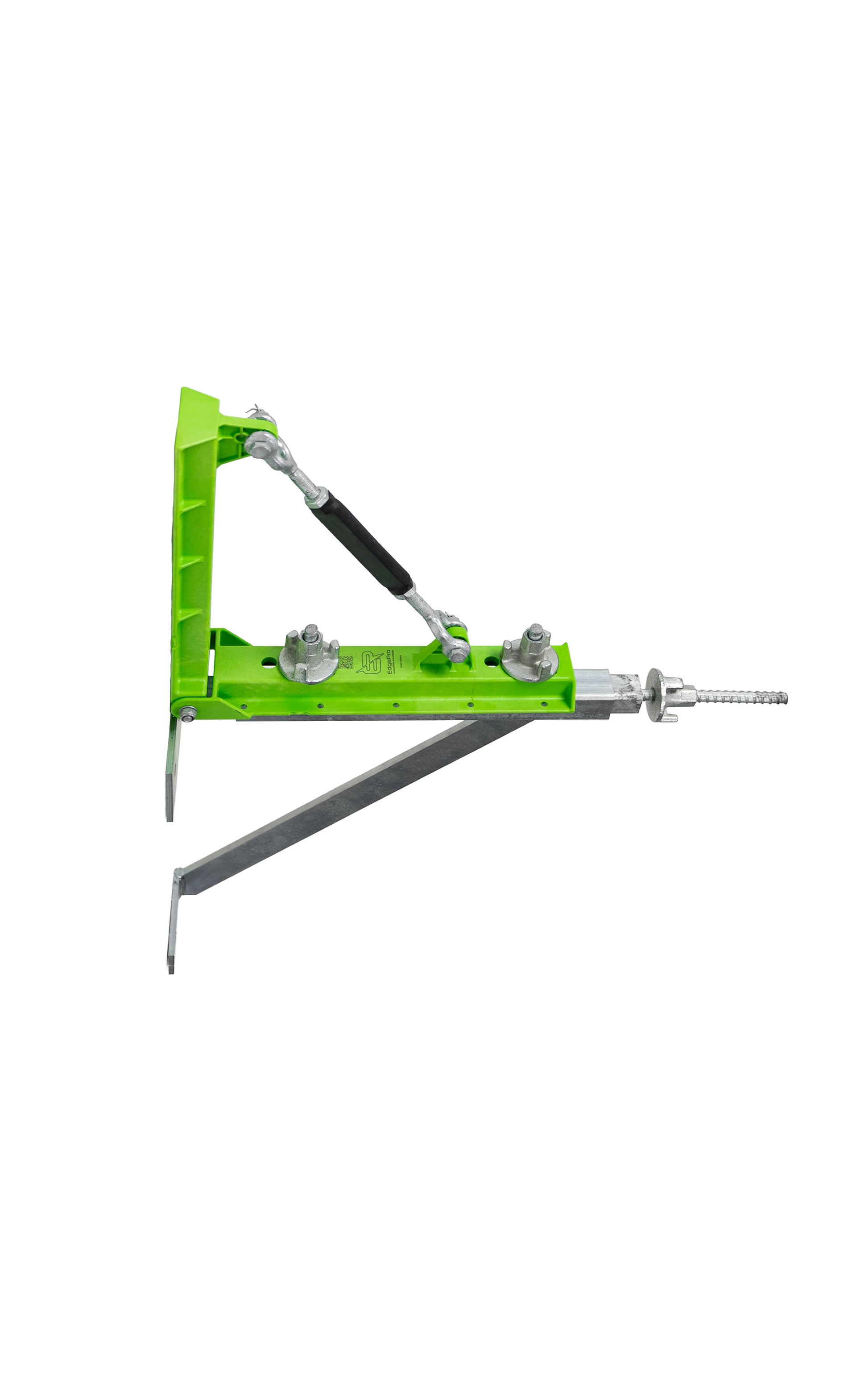

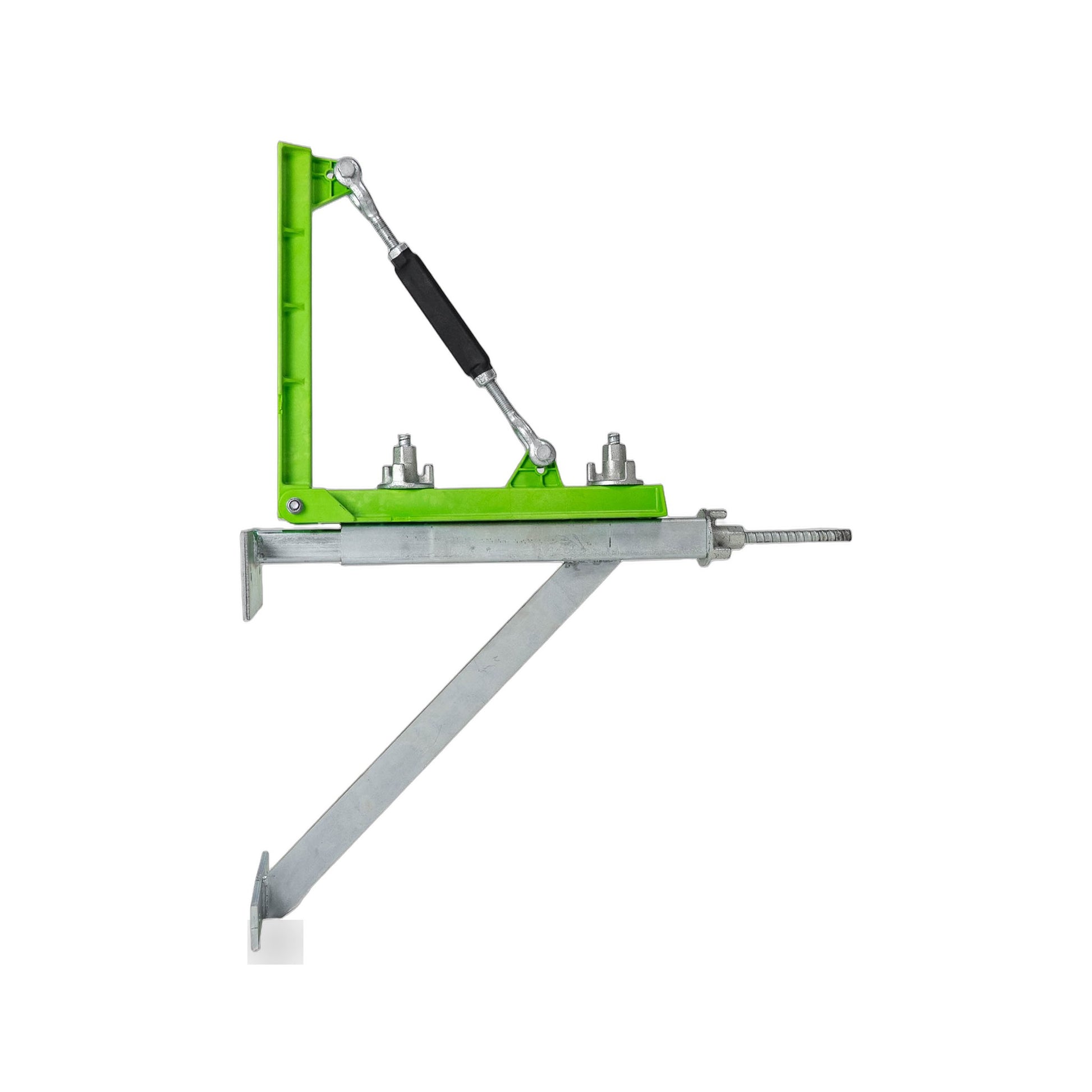

Wall-mounted rebate bracket for slab overhangs and rebates
1 bracket per linear metre of edge
Enter your edge length to set the quantity.
Minimum order 20
Couldn't load pickup availability
Ordering for a project? Call 1300 085 365
- 12-month warranty
- Ships from SEQ
- 500+ reuses per bracket
A purpose-built steel rebate bracket that creates concrete slab overhangs, wall rebates and edge projections from the top of concrete and block walls, no large framing or scaffolding underneath. Adjustable overhang, anchors directly to concrete or masonry.
Product details
Specifications
- Series
- RebateEdge
- Material
- Structural Steel
- Dimensions

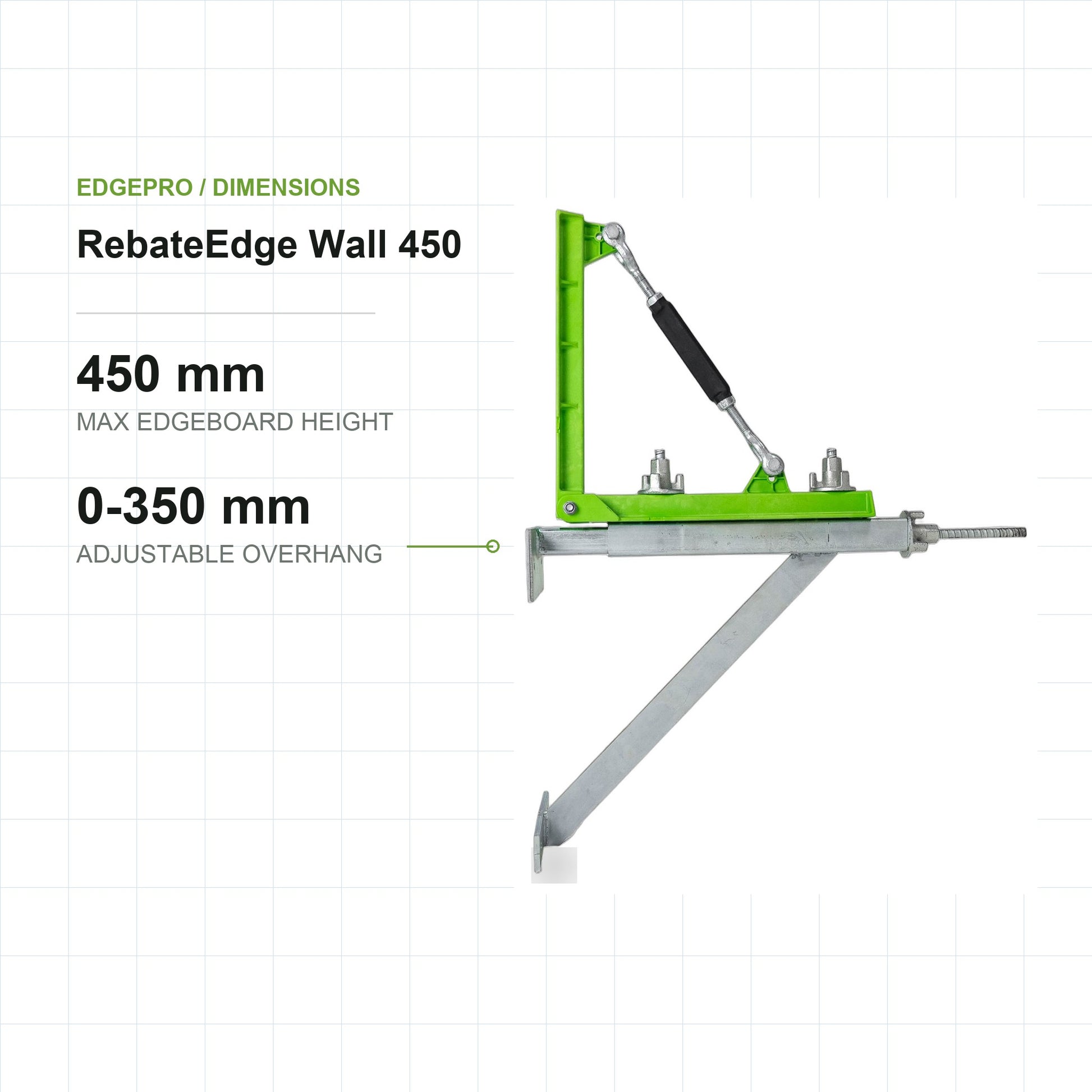

- Max edgeboard height 450mm, adjustable overhang 0-350mm
- Finish
- Galvanised
Anchoring to different surfaces
EdgePro brackets anchor to whatever the pour sits on. Match the fastener to the surface:
| Surface | Fastener |
|---|---|
| Concrete | FixEdge Concrete Bolt M12 or FixEdge Z-Bar Concrete Bolt M12 |
| Plywood or timber | Hexhead screws (30mm to 100mm) or coach screws |
| Dirt, granular bedding or sand | FixEdge Ground Screw Anchor or FixEdge StarPeg Anchor |
| Metal | Weld lugs or threaded bar, locked with the FixEdge Z-Bar Locknut |
Full setup steps in Instructions For Use.
Works with
-
EdgePro FixEdge Concrete Bolt M12 (S)
$4.00 ex GST
Compare the bracket range
Every EdgePro bracket, side by side. Pick the height and duty rating your pour needs.
| Feature | BaseEdge 300 (P) | FlexEdge 600 (P) | MaxEdge 1200 (S) | RebateEdge Wall 450 (S) | RebateEdge Slab 450 (S) |
|---|---|---|---|---|---|
| Type | Fixed 90° | Adjustable | Adjustable | Rebate / Wall | Rebate / Slab |
| Max concrete height | 300mm | 600mm | 1200mm | 450mm | 450mm |
| Material | Polymer | Polymer & Steel (Gal) | Steel (Gal & Powdercoat) | Steel (Gal) | Steel (Gal) |
| Adjustability | ✕ | ✓ ±15° | ✓ | ✓ | ✓ |
| Weight | ~1.1kg | ~3.0kg | ~22kg | ~11kg | 7kg |
| Best use | Hi-rise / Precast | Civil / Commercial / Residential / Hi-rise | Heavy duty | Wall rebates / Overhangs | Step-downs / Block rebates |
| Reusable & easy cleaned | ✓ | ✓ | ✓ | ✓ | ✓ |
| Status | Available | Available | Available | Available | Coming soon |
