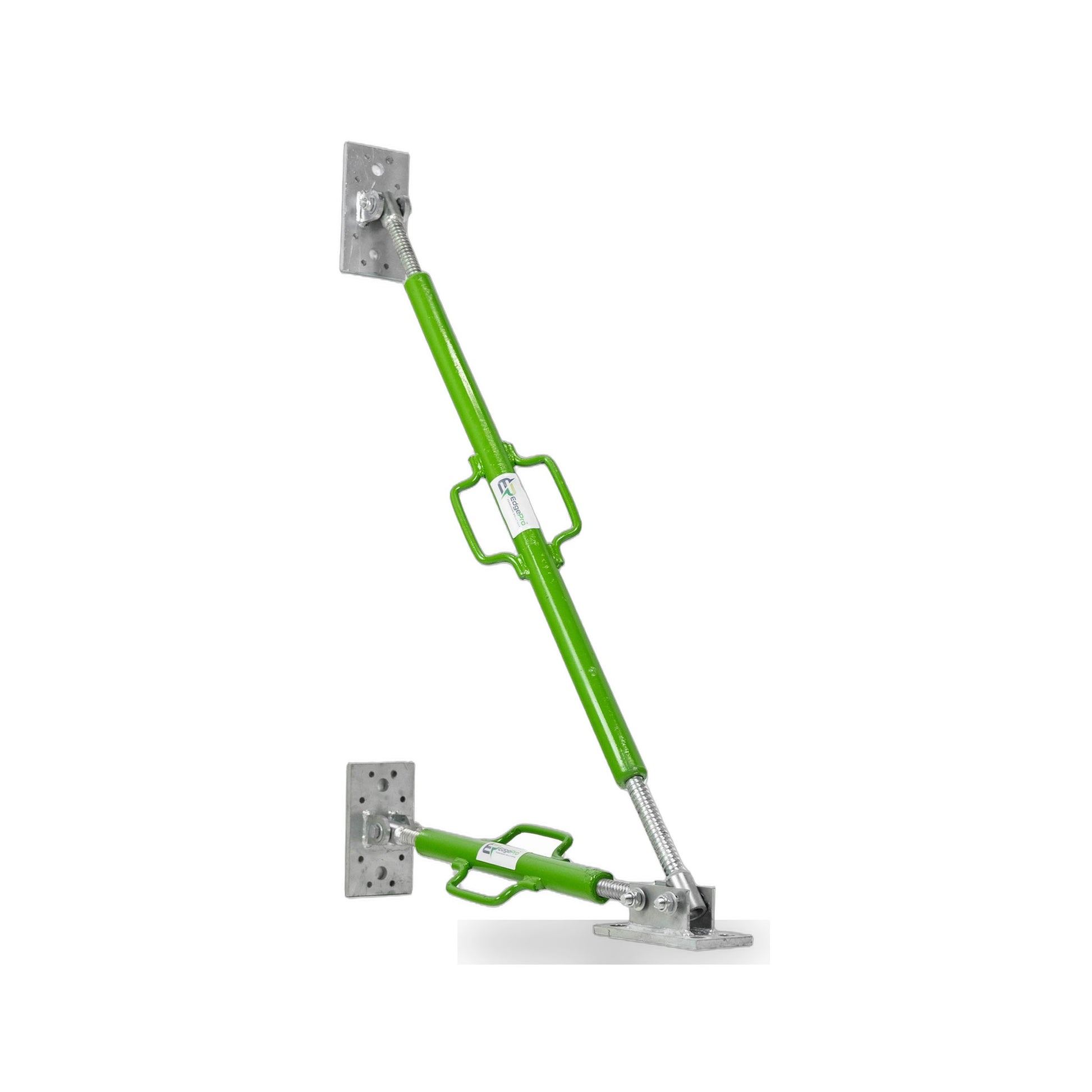

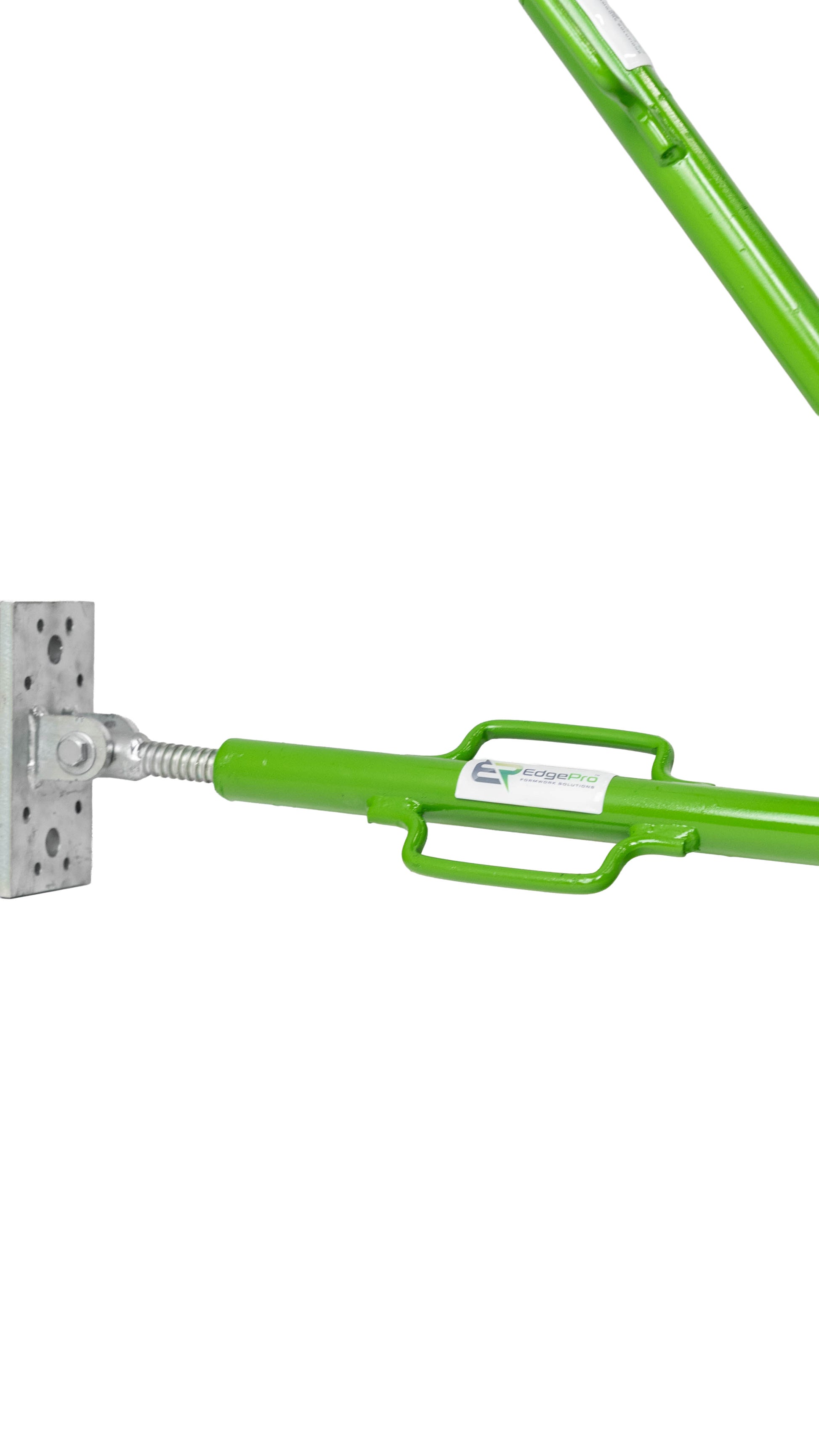

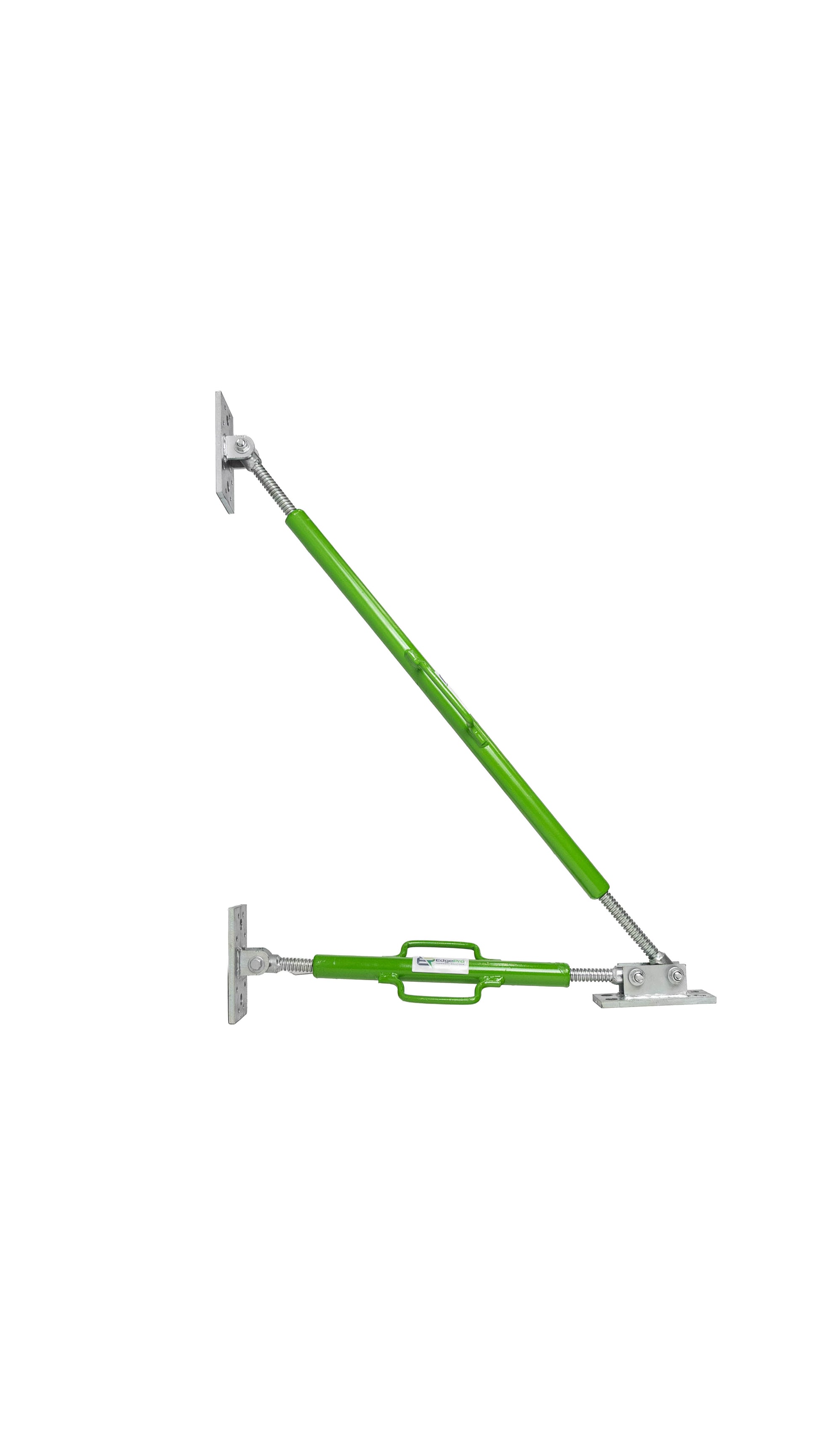

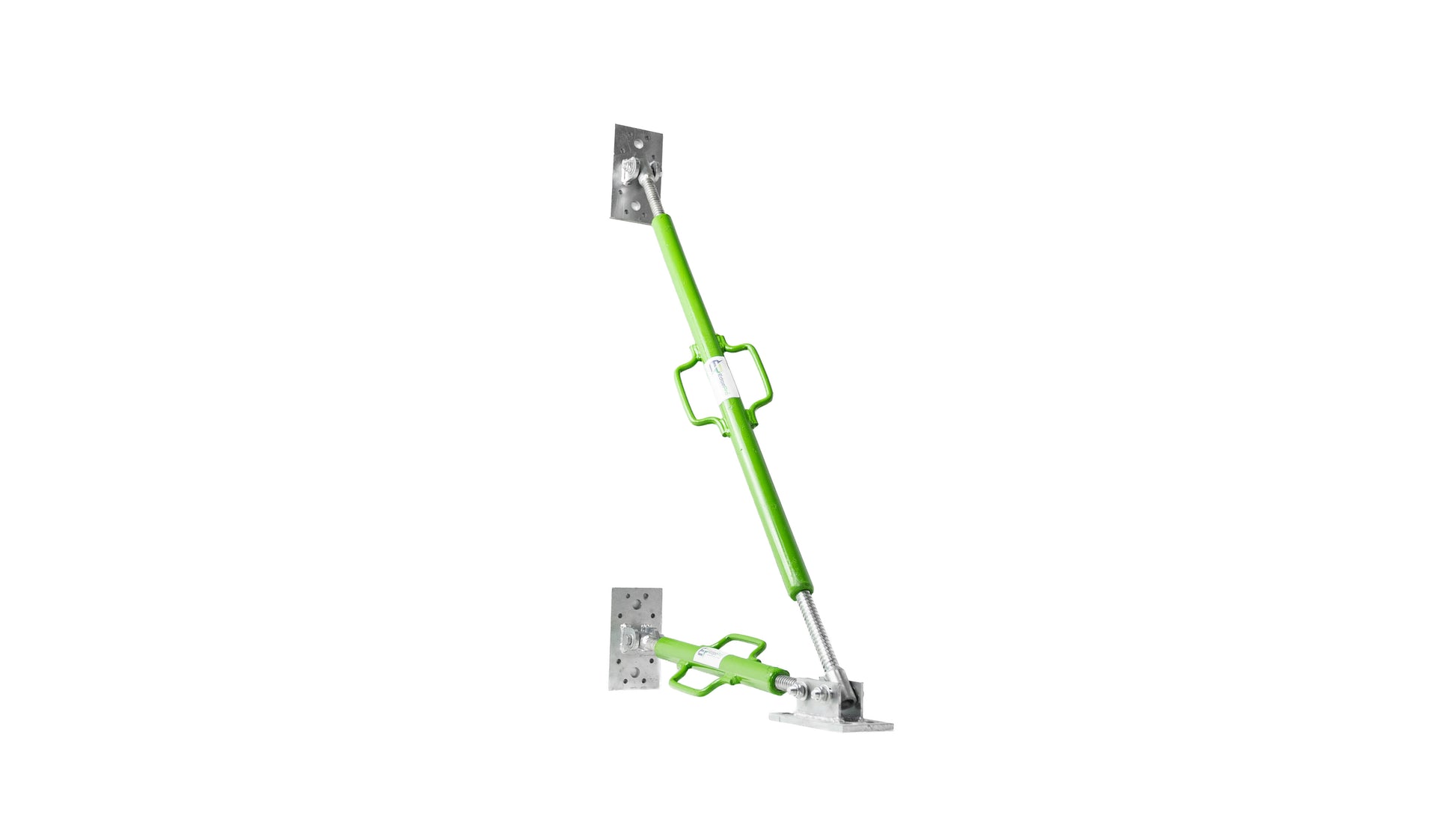

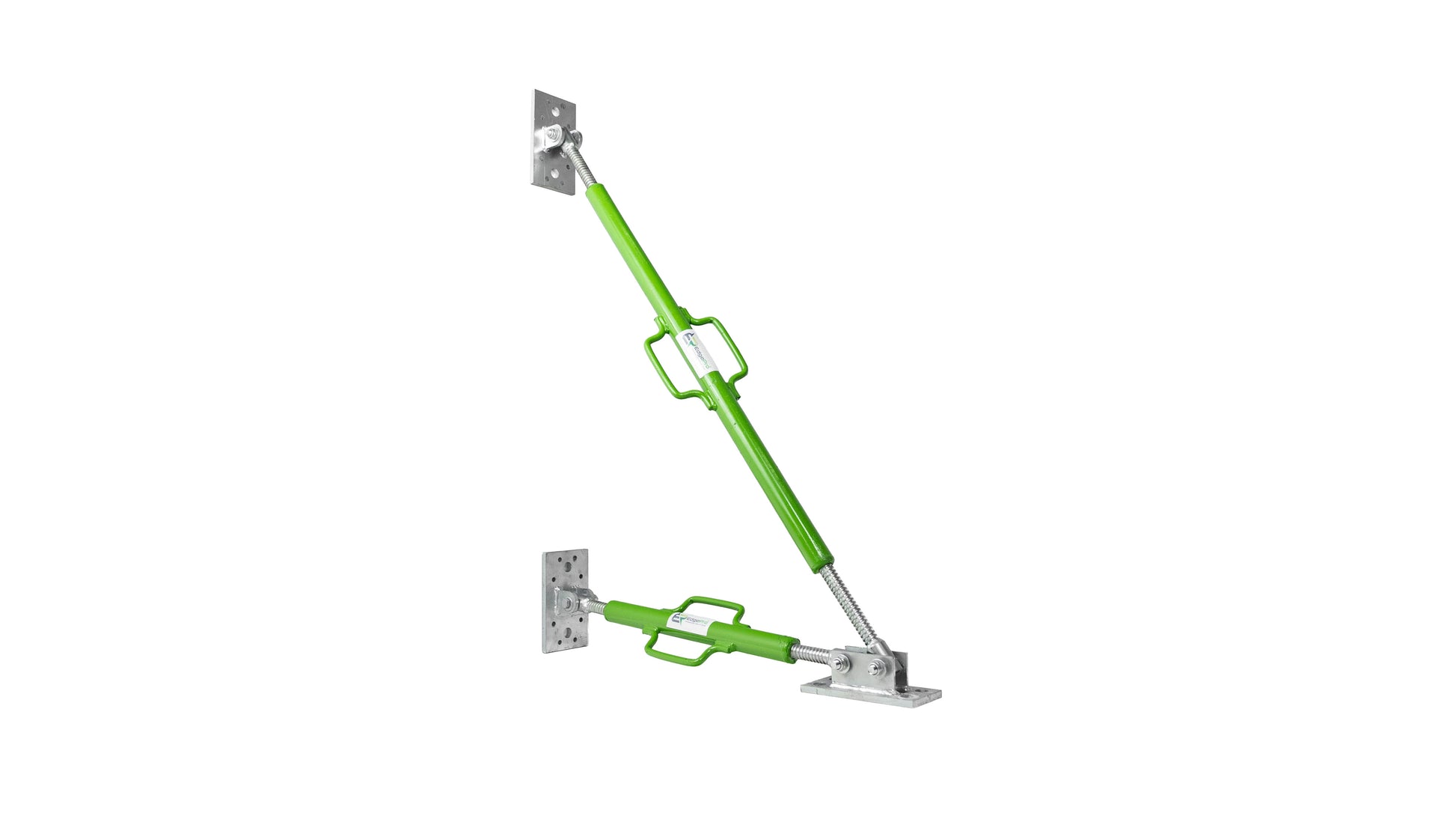

EdgePro MaxEdge 1200 (S)
EdgePro MaxEdge 1200 (S)
Heavy-duty adjustable steel bracket, up to 1200mm
1 bracket per linear metre of edge
Enter your edge length to set the quantity.
Minimum order 20
Couldn't load pickup availability
Ordering for a project? Call 1300 085 365
- 12-month warranty
- Ships from SEQ
- 500+ reuses per bracket
The flagship heavy-duty bracket. Engineered for large slab edge, civil infrastructure and high-load concrete pours up to 1200mm, slabs, walls, capping beams and pedestals across commercial, civil and mining construction. Galvanised and powdercoated structural steel.
Product details
Volume pricing
| Quantity | Price each |
|---|---|
| 20 to 49 Current | $178.00 ex GST |
| 50 to 79 | $176.00 ex GST |
| 80 to 99 | $174.00 ex GST |
| 100 to 199 | $172.00 ex GST |
| 200 to 499 | $170.00 ex GST |
| 500+ | $168.00 ex GST |
Volume pricing applies automatically in cart.
Specifications
- Series
- MaxEdge
- Material
- Structural Steel

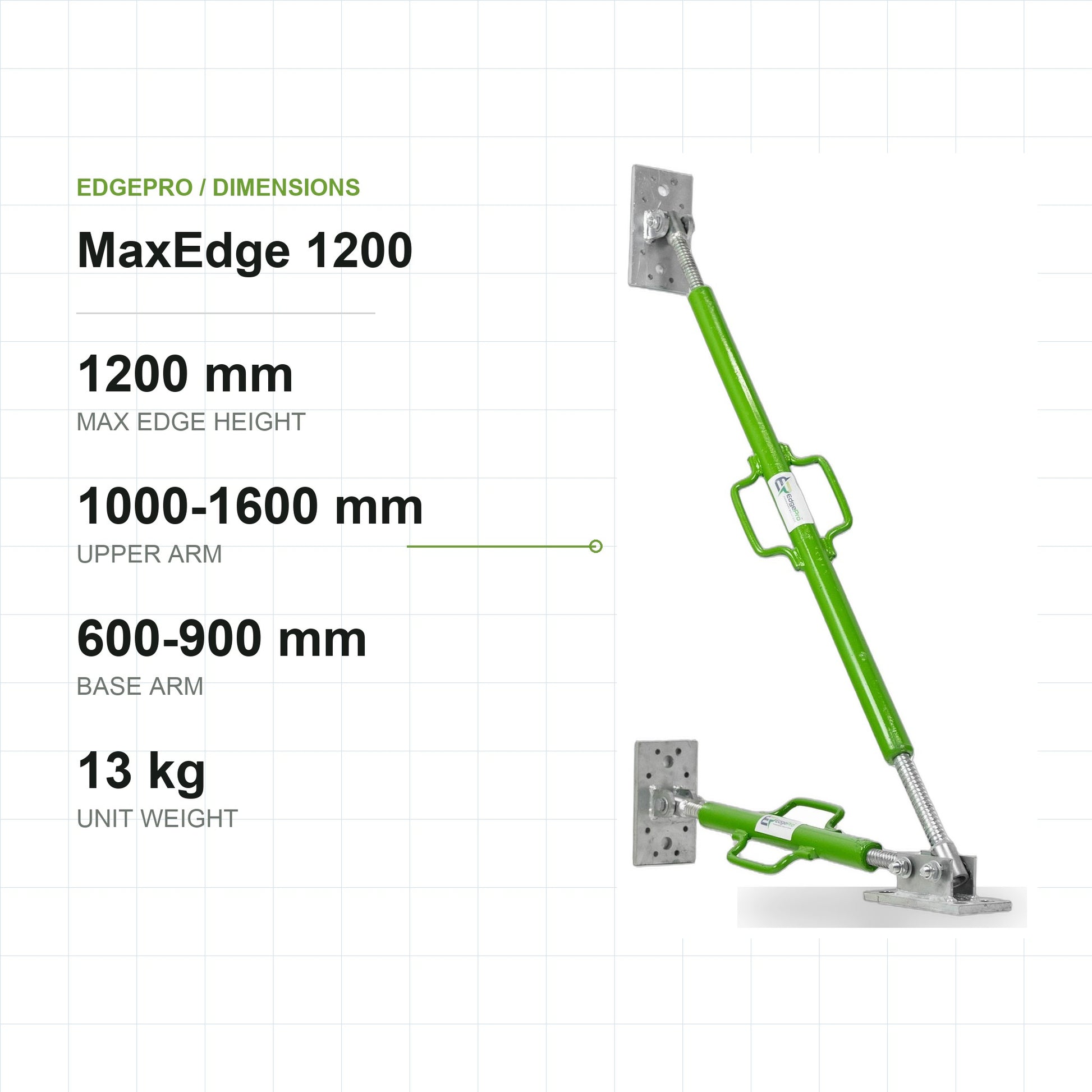

- Dimensions
- Upper arm 1000-1600mm, base arm 600-900mm, 40mm steel tube
- Finish
- Galvanised and powdercoated green
Anchoring to different surfaces
EdgePro brackets anchor to whatever the pour sits on. Match the fastener to the surface:
| Surface | Fastener |
|---|---|
| Concrete | FixEdge Concrete Bolt M12 or FixEdge Z-Bar Concrete Bolt M12 |
| Plywood or timber | Hexhead screws (30mm to 100mm) or coach screws |
| Dirt, granular bedding or sand | FixEdge Ground Screw Anchor or FixEdge StarPeg Anchor |
| Metal | Weld lugs or threaded bar, locked with the FixEdge Z-Bar Locknut |
Full setup steps in Instructions For Use.
Works with
-

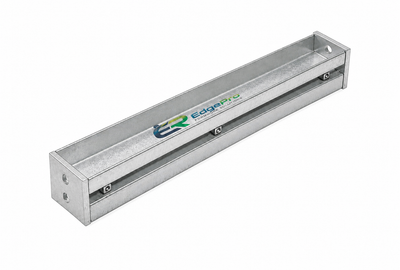

EdgePro SlimEdge 1200 (S)
$180.00 ex GST
-
EdgePro StoreEdge MaxEdge Stillage 70 (S)
$300.00 ex GST
Compare the bracket range
Every EdgePro bracket, side by side. Pick the height and duty rating your pour needs.
| Feature | BaseEdge 300 (P) | FlexEdge 600 (P) | MaxEdge 1200 (S) | RebateEdge Wall 450 (S) | RebateEdge Slab 450 (S) |
|---|---|---|---|---|---|
| Type | Fixed 90° | Adjustable | Adjustable | Rebate / Wall | Rebate / Slab |
| Max concrete height | 300mm | 600mm | 1200mm | 450mm | 450mm |
| Material | Polymer | Polymer & Steel (Gal) | Steel (Gal & Powdercoat) | Steel (Gal) | Steel (Gal) |
| Adjustability | ✕ | ✓ ±15° | ✓ | ✓ | ✓ |
| Weight | ~1.1kg | ~3.0kg | ~22kg | ~11kg | 7kg |
| Best use | Hi-rise / Precast | Civil / Commercial / Residential / Hi-rise | Heavy duty | Wall rebates / Overhangs | Step-downs / Block rebates |
| Reusable & easy cleaned | ✓ | ✓ | ✓ | ✓ | ✓ |
| Status | Available | Available | Available | Available | Coming soon |
On site
EdgePro bracing on real pours across Australia.
FlexEdge on a steel edge form
Set out for a warehouse pour
Pour day
Edge forms on compacted base
Bracing a suspended slab edge
Pathway forms, regional QLD
