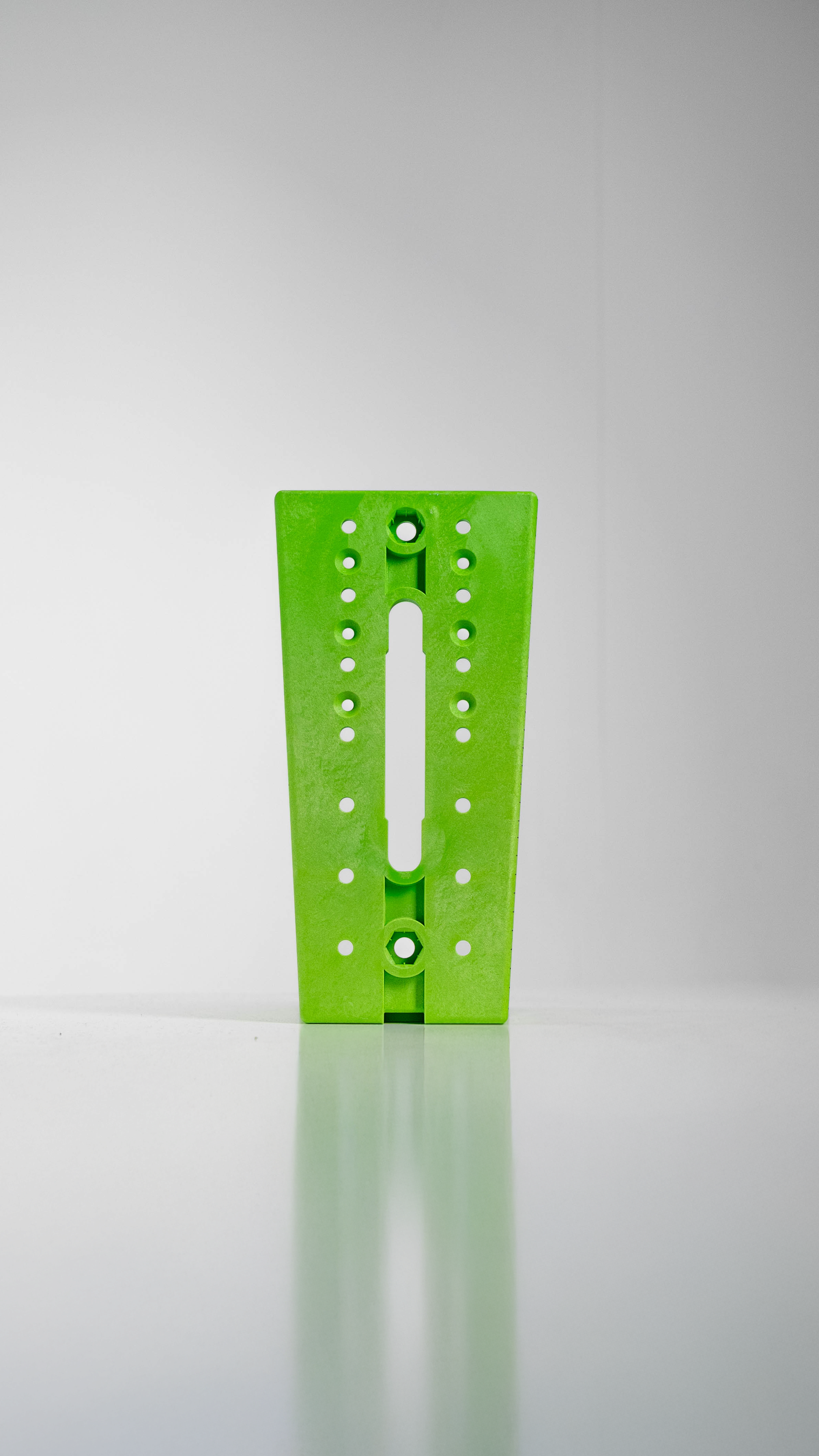

EdgePro BaseEdge 300 (P)
EdgePro BaseEdge 300 (P)
Fixed 90 degree polymer slab-edge bracket, up to 300mm
1 bracket per linear metre of edge
Enter your edge length to set the quantity.

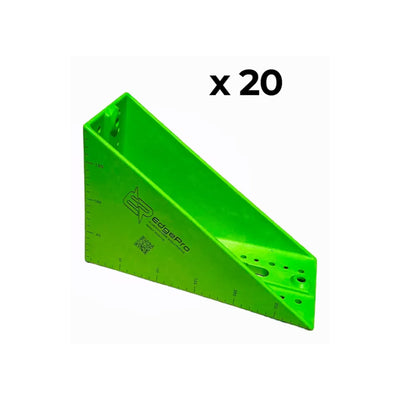

Minimum order 20
Couldn't load pickup availability
Ordering for a project? Call 1300 085 365
- 12-month warranty
- Ships from SEQ
- 500+ reuses per bracket
A fixed 90° polymer formwork bracket engineered for fast, accurate and repeatable slab edge construction up to 300mm. A modern, reusable alternative to timber bracing, lighter, faster to set out, and built for harsh site conditions.
Formerly sold as the CAP1 fixed 90° bracket.
Product details
Volume pricing
| Quantity | Price each |
|---|---|
| 20 to 49 Current | $60.00 ex GST |
| 50 to 99 | $59.00 ex GST |
| 100 to 199 | $58.00 ex GST |
| 200 to 499 | $57.00 ex GST |
| 500+ | $56.00 ex GST |
Volume pricing applies automatically in cart.
Specifications
- Series
- BaseEdge
- Material
- Engineered Polymer Composite

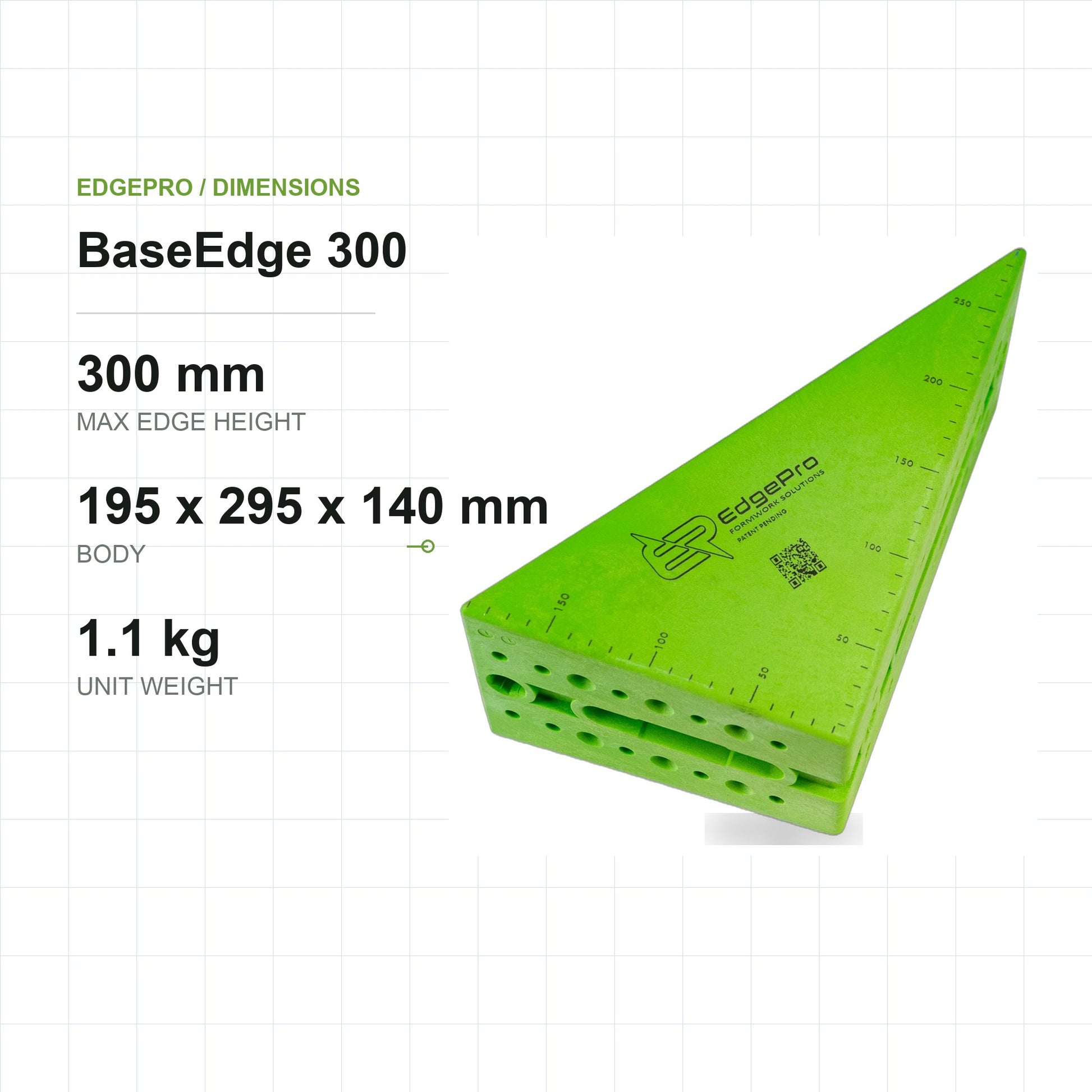

- Dimensions
- 195 x 295 x 140mm
Anchoring to different surfaces
EdgePro brackets anchor to whatever the pour sits on. Match the fastener to the surface:
| Surface | Fastener |
|---|---|
| Concrete | FixEdge Concrete Bolt M12 or FixEdge Z-Bar Concrete Bolt M12 |
| Plywood or timber | Hexhead screws (30mm to 100mm) or coach screws |
| Dirt, granular bedding or sand | FixEdge Ground Screw Anchor or FixEdge StarPeg Anchor |

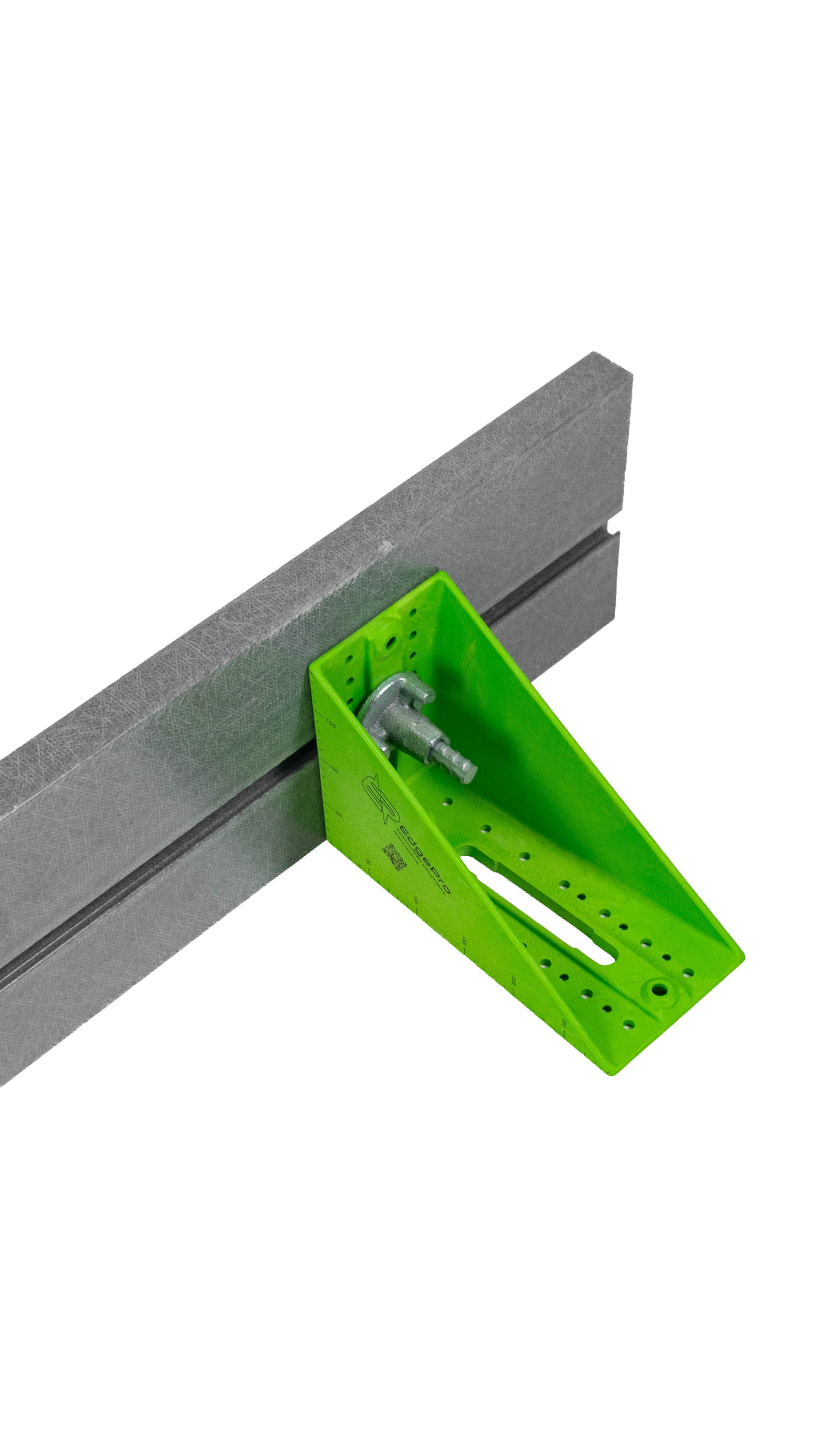

| Metal | Weld lugs or threaded bar, locked with the FixEdge Z-Bar Locknut |
Full setup steps in Instructions For Use.
Buy it in a pack
Works with
-
EdgePro FixEdge StarPeg Anchor (S)
$12.00 ex GST
-
EdgePro FixEdge Ground Screw Anchor (S)
$18.00 ex GST
-
EdgePro StoreEdge Stillage 50 (S)
$550.00 ex GST
-
EdgePro BoardEdge FRP Edgeboard 250 (P)
$240.00 ex GST
-
EdgePro BoardEdge FRP Connector 250 (P)
$4.00 ex GST
Compare the bracket range
Every EdgePro bracket, side by side. Pick the height and duty rating your pour needs.
| Feature | BaseEdge 300 (P) | FlexEdge 600 (P) | MaxEdge 1200 (S) | RebateEdge Wall 450 (S) | RebateEdge Slab 450 (S) |
|---|---|---|---|---|---|
| Type | Fixed 90° | Adjustable | Adjustable | Rebate / Wall | Rebate / Slab |
| Max concrete height | 300mm | 600mm | 1200mm | 450mm | 450mm |
| Material | Polymer | Polymer & Steel (Gal) | Steel (Gal & Powdercoat) | Steel (Gal) | Steel (Gal) |
| Adjustability | ✕ | ✓ ±15° | ✓ | ✓ | ✓ |
| Weight | ~1.1kg | ~3.0kg | ~22kg | ~11kg | 7kg |
| Best use | Hi-rise / Precast | Civil / Commercial / Residential / Hi-rise | Heavy duty | Wall rebates / Overhangs | Step-downs / Block rebates |
| Reusable & easy cleaned | ✓ | ✓ | ✓ | ✓ | ✓ |
| Status | Available | Available | Available | Available | Coming soon |
On site
EdgePro bracing on real pours across Australia.
FlexEdge on a steel edge form
Set out for a warehouse pour
Pour day
Edge forms on compacted base
Bracing a suspended slab edge
Pathway forms, regional QLD
